The SNM-SC1200 is a technically advanced 3 axis CNC machine. It has a fixed bridge structure, with a mobile carriage and table, made as a single strong and solid unit with no need for special foundation structure when installed.
DownloadGeneral characteristics
The SNM-SC1200 has a 14 automatic tool changer. It is fast, and easy to program for marble, granite and stone. It is capable of carrying various types of jobs using either tools or disks.

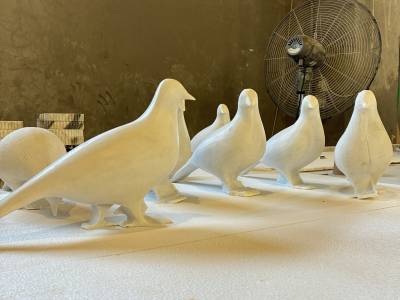

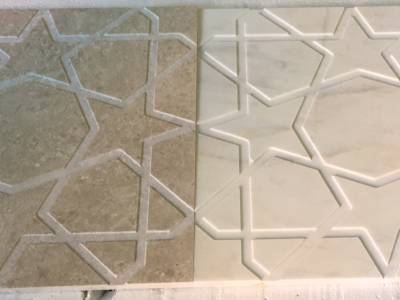

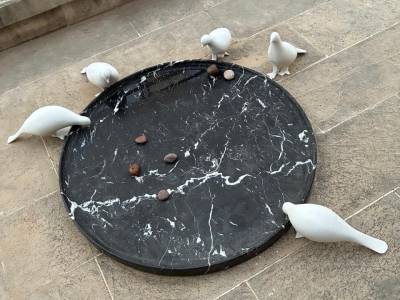

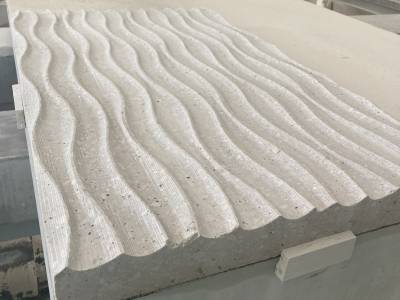

With the SNM-SC1200 it is possible to engrave, write, carve, shape, cut and drill. It is the ideal machine for making kitchen tops and pocketing.
• The 3 interpolated axis motion is done by brushless motors coupled with extremely precise reduced- backlash reduction gears.
• The table sliding device is working in an oil bath to reduce friction and is protected by stainless steel covers.
• The carriage works on hard chrome axes coupled to low friction Teflon slides protected by bellows.
• The machine X, Y and Z axes move with a high precision rectified ball screw.
| X axis stroke (table) | 2800 mm |
| Y axis stroke (carriage unit) | 1500 mm |
| Z axis stroke (carriage unit) | 480 mm |
| Table dimensions | 2.8 meters x 1.2 meters |
| Tool-holder spindle motor power | 10 Hp |
| Rotation speed of the tool-holder motor | 8000 rpm |
| Spindle motor cone size | ISO 40 |
| Automatic centralized lubrication for the ball screws and carriage slides | Oil |
| Electronic hand-wheel | Yes |
| Water requirement | 20 liters/min |
| Compressed air pressure | 6 bars |
| Max. total absorbed power | 15 Kw |
| Overall dimensions: Length x Width x Height | 6.6 m x 3 m x 3 m |
| Approximate total machine weight | 5.5 tons |
| Maximum weight on table | 2 tons |
| Vacuum pump | Optional |
| Laser device | Optional |
